Deskripsi

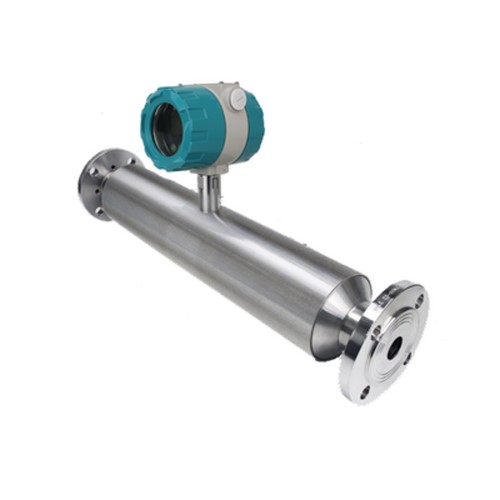

Straight tube density meter is a precision instrument for continuous measurement of fluid density in industrial processes. It meets the needs of more demanding processes and trade handover measurements. Straight tube density meter has better fluency and easy to clean. It is unaffected by vibration, flow and pressure variations. It is a maintenance-free, robust and reliable instrument.
Product Benefits:
Fully integrated “plug and play, maintenance-free” digital measurement.
No moving parts, to meet the needs of continuous measurement, no need for maintenance
Flexible and convenient installation, no need for debugging
Small overall size, low space requirements for the site
Unique plug-in design with lengths of up to 80 meters
Integral transmitter with analog and digital communication.
Factory tested and validated to ensure accuracy and performance
Continuous real-time measurement in pipelines, bypasses and tanks
Available in a wide range of corrosion-resistant materials
Excellent reliability and safety
Optimized design – less susceptible to vibration and pressure changes
Automatically compensates for the effect of temperature on the density of the measured medium during the density measurement process.
Product Features:
- Pipeline density meter has been factory calibrated, no need for on-site calibration. Can measure online
- Density, temperature and concentration of two components. With on-site display and remote transmission function, DC power supply positive
- DC power supply positive and negative polarity adaptive function, touch key operation function.
Applications:
- Viscous or non-Newtonian fluid media
- Low-flow media
- Non-uniform mixtures
- Entrained solids or gaseous media
- Slurries
- Strong corrosive fluids
- Ultra-high temperature, ultra-low temperature medium
-
Technical indicators and performance parameters
- Applicable media: suitable for cement slurry, slurry, mortar, viscous and easy to crystallize liquid, containing gas liquid.
- Receiving material: 316L stainless steel, C276, C22, Ti alloy, HB3, Monel, zirconium, high nickel alloy.
- Density measurement range: (0~4) g/cm3 range optional.
- Temperature range: (-50~250)°C, (-200~300)°C
- Pressure level: ≤4MPa, high pressure to be customized
- Power supply: 24VDC/500mA
- Output signal: (4~20) mA (0~1) KHz
- Communication signal: Modbus RTU 485 communication
- Explosion-proof grade: EX d II C T6 Gb
- Protection grade: IP67
