Product Advantages:

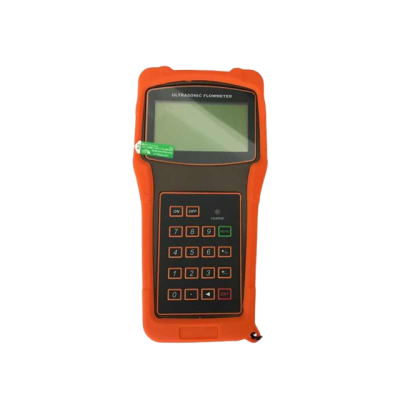

The core value of the handheld ultrasonic flowmeter lies in its unparalleled convenience, flexibility, and robust diagnostic capabilities, making complex flow measurement as simple as using a multimeter.
- True Non-Contact Measurement: Eliminates the need for pipe drilling or production shutdowns. Magnetic sensors rapidly capture data with zero installation costs and zero production downtime, causing no disruption to operations.
- Ultimate Portability and Simple Operation: Integrated handheld design is lightweight with extended battery life. Large screen with Chinese menu guidance enables operators to be trained in just 5 minutes, significantly lowering technical requirements.
- Multi-functional powerhouse: A single device measures instantaneous flow, cumulative flow, velocity, and heat (enthalpy), plus features big data storage, trend curve plotting, and report generation—delivering far greater value than single-function instruments.
- Exceptional Adaptability: A single host unit accommodates diverse pipe diameters (DN15–DN6000+) and materials (steel, stainless steel, copper, PVC, etc.). A one-time investment enables inspection of thousands of measurement points across entire facilities, delivering exceptional ROI.
- Intelligent Data Management: Features massive built-in storage, supports USB export or Bluetooth wireless printing. Data seamlessly transfers to computers to generate ISO 50001-compliant audit reports, empowering digital management.
- Unmatched Cost Efficiency: Eliminates the need for expensive fixed flow meters at each measurement point. A single handheld meter replaces multiple fixed meters for inspection and verification, delivering the most cost-effective flow management solution.
Core Application Areas:
- Flow Inspection and Verification: Conduct regular on-site inspections of fixed flow meters to compare and validate data, ensuring accuracy.
- Energy Audits and Efficiency Management: Rapidly measure inlet/outlet flow rates of pumps, heat exchangers, and other equipment to calculate system efficiency and identify energy-saving opportunities.
- Water Balance Testing and Leak Detection: Conduct comprehensive surveys of industrial and building water supply networks to rapidly pinpoint leak locations.
- Process Fault Diagnosis: Diagnose systemic issues including pump/valve performance, pipeline blockages, and uneven flow distribution.
- Temporary Metering and Data Logging: Provide temporary metering solutions for short-term experiments, process adjustments, or new projects while recording flow trend data.
Technical Specifications:
- Measurement Principle: Ultrasonic Time-of-Flight Method
- Measurement Accuracy: ±1.0% of reading (after calibration), ±0.5% of reading (for pipe-mounted sensors)
- Repeatability: ±0.2%
- Applicable Pipe Diameters: DN15 ~ DN6000+ (full coverage)
- Sensor Types: Clamp-on (standard), Pipe-mounted (high precision, plug-and-play)
- Data Logging: Automatically records flow, heat, and other data at set intervals; stores over one million entries
- Output & Communication: USB data export, Bluetooth wireless printing (optional), RS232
- Display: Large-size color LCD screen with Chinese/English interface
- Battery Life: Rechargeable lithium battery, over 10 hours of continuous operation
- Protection Rating: Main unit IP65, dustproof and waterproof
